When Paint Passes Color QC but Fails in Application

A batch can look acceptable in the paint QC lab and still cause trouble during application. The color reading may fall within tolerance. The production sheet may show the right formula. The drawdown used for approval may even look acceptable during a quick inspection.

Then the problem appears in use; a sprayed panel shows fine specks, a roller application reveals poor hiding. The gloss looks uneven from one angle. The paint thickens after storage, or a settled layer refuses to mix back in cleanly. In those cases, the approved color value has answered only part of the quality question.

Color is the result of a prepared sample under defined conditions. It does not prove that the pigment was fully wetted, dispersed to the right state, and stabilized well enough for storage and application. That distinction becomes especially important when pigment dispersion, particle size, rheology, and film formation all influence the same visible result.

The better investigation starts with the defect itself. A speck, a gloss shift, hard sediment, and poor hiding do not point to the same root cause. Each one says something different about the pigment system.

Pigments enter paint as particulate materials, not as pure color. A pigment batch may contain primary particles, aggregates, softer agglomerates, treated surfaces, fines, moisture, or small supplier differences. Once the pigment enters the liquid phase, the formulation has to wet the surface, separate the particles to the required state, and keep them from flocculating or settling.

That sequence rarely fails in one neat way. A batch may look right during color measurement while still carrying a physical weakness that appears later.

Colorimetry shows the optical result on a prepared surface. Fineness of grind shows whether coarse material remains. A drawdown reveals film defects. Gloss measurement checks surface reflection. Viscosity and rheology show whether the liquid structure has shifted. Storage checks show whether the system holds together after time, temperature, or settling stress.

No single result provides a complete picture. The useful evidence comes from comparing the defect with the QC signal that should have exposed it.

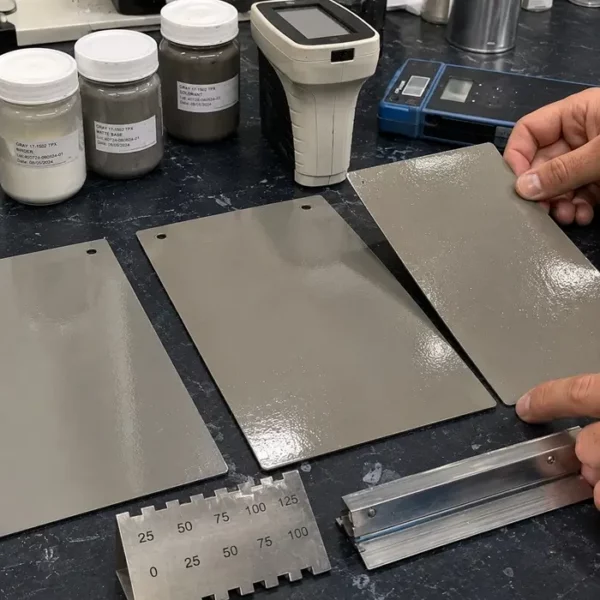

Consider a gray tint base that passes its color check on a controlled drawdown. The measured color sits within tolerance, and the batch looks acceptable at normal viewing distance. During spray application, however, the film shows fine dark specks and a slightly uneven gloss.

That pattern should not send QC back to the color recipe first. The better starting point is the physical state of the pigment system.

A fineness of grind check may show that a small amount of coarse material remains. Microscopy can then help distinguish pigment agglomerates from dried skin, filter debris, or outside contamination. If the particles are pigment-rich and appear in the failed batch but not in the retained good batch, the investigation moves toward wetting, dispersion energy, raw pigment variation, or filtration. If the particles are resinous or irregular, dried material from the vessel, lid, or transfer line becomes more likely.

The color value did not lie. It answered a narrower question. The batch matched color under the preparation and measurement conditions used in QC. The application failure came from a defect that colorimetry was not designed to catch.

Specks are one of the clearest signs that color approval missed a physical defect.

A small number of coarse particles may not shift the average color enough to fail the batch. However, those same particles can become obvious on a sprayed, rolled, or drawn-down film. They may appear as dark specks, colored dots, grit, raised particles, or small surface defects.

Likely causes include incomplete pigment wetting, insufficient dispersion energy, dried skin from the vessel or packaging, contamination, poor filtration, or raw pigment agglomerates that resisted breakup. In powder terms, this is often a local failure of dispersion quality, not a global color error.

QC should not treat this as a color problem first. The better sequence is to inspect the film, check the fineness of the grind, examine the defect under magnification, and compare the failed batch with a retained good batch. If the particles are pigment-rich, the issue points toward dispersion or raw material variation. If they are resinous, fibrous, metallic, or irregular in another way, contamination or dried material becomes more likely.

The practical decision is simple: a color pass does not justify release when visible particles remain in the film.

Poor hiding is more subtle. A batch can match color on a controlled sample and still cover the substrate poorly during application.

This can happen when the drawdown used for color QC does not represent the actual film thickness, substrate, drying condition, or application method. It can also happen when the pigment dispersion state changes the effective optical performance of the film.

Poor hiding often means the pigment is present, but not working efficiently in the film. Some pigment may remain tied up in agglomerates. Some may flocculate after dispersion. The applied film may also be thinner than the QC drawdown, or the solids balance may have shifted slightly. The color can still look close on one prepared panel while the coating fails to cover the real substrate.

In this case, QC should compare color and hiding under controlled film thickness. The batch should be tested against the same substrate and application conditions that matter in use. If color is acceptable at one film thickness but hiding fails at the required coverage, the batch has not truly met performance expectations.

The useful QC question is not only whether the color matches. It is whether the color matches at the required hiding performance.

Gloss failure often points to the surface of the dried film rather than the colorant alone.

A paint can have the right color and the wrong surface appearance. The film may look duller, shinier, patchier, hazier, or less uniform than expected. This can come from pigment flocculation, coarse particles, poor leveling, air entrainment, incompatible additives, surface roughness, or a shift in rheology during drying.

Color and gloss also interact visually. Two panels with similar color values can look different because one reflects light more sharply than the other. That is why gloss measurement should not be treated as a cosmetic extra in appearance-sensitive coatings. It is part of the visual specification.

When gloss fails after color approval, QC should inspect the drawdown surface, measure gloss at the relevant angle, check viscosity or rheology, and look for signs of flocculation or poor leveling. If the gloss shift appears together with specks or roughness, coarse particles or dispersion defects become stronger suspects. If the film looks smooth but gloss still shifts, resin, additive, drying, or surface formation effects may be involved.

Color approval cannot override a failed appearance profile.

A fresh paint sample can pass color QC and then change during storage. That is often where pigment stabilization becomes critical.

Delayed color shift may result from flocculation, reagglomeration, settling, poor reincorporation, pH drift, additive migration, binder instability, or microbial effects in waterborne systems. The batch may look correct immediately after production because the pigment is temporarily dispersed. Over time, the system moves toward a different structure.

This is a different problem from an incorrect color recipe. The recipe may be right, but the dispersed state is not stable enough. Similar logic applies in powder storage, where moisture, temperature, pressure, and time can shift handling behavior. That is why storage-related issues such as caking remain important in broader powder quality work.

QC should compare fresh and aged samples under the same drawdown conditions. The retained sample matters here. If stirring restores the color, settling or weak reversible flocculation may be involved. If stirring does not restore the color, the batch may have undergone stronger reagglomeration, irreversible sediment formation, chemical change, or formulation instability.

The practical release question becomes whether the batch remains within color and appearance tolerance after realistic storage stress.

Viscosity drift often gives an early warning that the pigment system is not under control.

Pigment particles contribute surface area, structure, and particle interactions to the formulation. If wetting is incomplete, dispersant demand changes, pH shifts, or flocculation develops, the paint can thicken or lose structure over time. That may lead to poor leveling, sagging, roller marks, spray issues, filling problems, or inconsistent film build.

A color value alone will not detect this risk. The batch can still measure close to standard while its application behavior moves outside the usable range.

QC should compare viscosity at defined shear conditions and, for more sensitive systems, look beyond a single point viscosity number. A batch that passes color but shows abnormal flow behavior should be investigated before release, especially if the coating depends on sprayability, leveling, sag resistance, or controlled film thickness.

The useful diagnostic question is whether the liquid structure changed while the color alone remained acceptable.

Settling is common in many pigmented systems. Hard sediment is more serious.

Soft settling may be acceptable if the paint reincorporates easily and returns to specification after normal mixing. Hard sediment suggests stronger particle interaction, compaction, weak stabilization, excessive density difference, poor rheological support, or an unsuitable particle size distribution.

A fresh color measurement cannot predict every settling problem. The pigment may be distributed well enough during immediate QC but unstable over time. Once hard sediment forms, the customer may no longer be able to restore the product by normal stirring.

QC should distinguish between soft settling, compacted sediment, and irreversible hard pack. The evaluation should include visual inspection, reincorporation behavior, color after remixing, viscosity after remixing, and film appearance.

A batch that passes color before storage may still fail as a commercial paint if the pigment cannot remain usable in the container.

Fineness of grind testing is valuable because it targets one part of the dispersion problem: coarse particles and agglomerates. It helps QC detect oversized particles that may create visible film defects, poor texture, or localized color problems.

However, a satisfactory grind reading does not prove that the whole pigment system is stable. Fine flocculated structures, weak dispersant coverage, storage instability, gloss loss, or rheology drift can still occur.

That is where QC often goes wrong. The Hegman gauge can help answer whether coarse particles or agglomerates remain. It does not fully answer whether the pigment system will remain stable and perform well during application.

For recurring application defects, fineness of grind should be combined with drawdown inspection, colorimetry, gloss, viscosity or rheology, and storage comparison. When the coarse tail of the material is the suspected driver, a broader particle size distribution interpretation can also help connect the measurement result to the observed defect.

Use the table as a first pass investigation aid. The final decision still depends on the product specification, customer requirement, application method, and comparison with a known good batch.

A color pass should only approve what was actually tested: color under defined preparation and measurement conditions. It should not automatically approve film appearance, hiding power, storage stability, or application behavior.

That distinction matters when a coating has known failure risks. A high gloss topcoat, a heavily pigmented system, a tint base, or a product with previous settling complaints needs release checks that reflect those risks. A single color value cannot carry the full quality decision.

For appearance-sensitive coatings, QC may need to link color approval to controlled drawdown inspection, gloss measurement, fineness of grind, viscosity behavior, and storage comparison. For products with a history of sedimentation or delayed color drift, fresh batch color approval should be supported by retained sample checks or accelerated stability data.

The release question is therefore not “Which tests can we add?” It is more specific: Which failure modes have previously reached the customer, and which QC signals would have caught them before release?

That makes the release package diagnostic rather than generic.

Several standard methods support the distinction between color approval, dispersion checks, and appearance testing. ASTM D2244 covers the calculation of color tolerances and small color differences from instrumentally measured color coordinates for opaque specimens such as painted panels. ASTM D1210 covers the fineness of dispersion, commonly called fineness of grind, for pigments in pigment vehicle systems such as liquid coatings and intermediates. ASTM D523 covers specular gloss measurement for nonmetallic specimens using 60°, 20°, and 85° glossmeter geometries.

These references do not replace a product specification. They help separate three different questions in paint QC: whether the color matches, whether coarse pigment or particulate defects remain, and whether the dried film has the expected gloss response. That separation matters when a coating passes color approval but still fails during application.

When paint passes color QC but fails in application, the color value is usually not the whole story. The visible failure may come from pigment agglomerates, incomplete wetting, poor stabilization, flocculation, rheology drift, surface roughness, or storage instability.

The useful response is not to add random tests. It is to read the defect pattern correctly.

Specks require a different investigation from poor hiding. Gloss loss points to a different failure path than hard sediment. Fresh color approval says little about delayed color drift. Viscosity change may expose a dispersion problem before the film does.

For paint manufacturers, the stronger QC question is therefore not only whether the color passed. It is whether the batch remains dispersed, stable, applicable, and visually acceptable under the conditions that matter to the customer.
