Troubleshooting

Wetting, dispersion
and dissolution

Floating, clumping, slow dissolution, and
unstable dispersion begin at different
interfacial steps

Determine whether liquid reaches the particle surface, penetrates agglomerates,
separates primary particles, or dissolves material after contact. Mixing harder
cannot correct every failure and can sometimes entrain air or damage a formulation.

Start the diagnostic selector
Browse mechanism routes

By what you see

By what you see

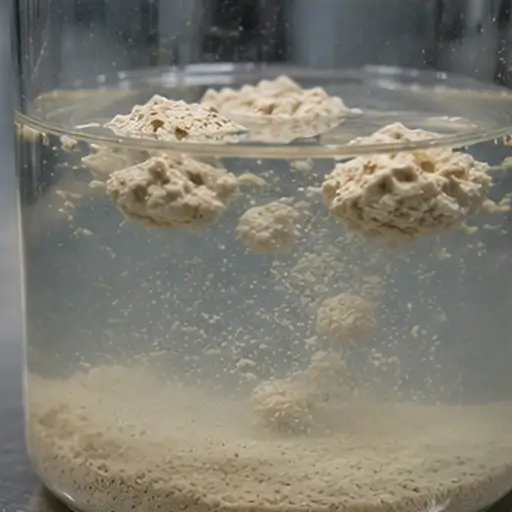

Powder floats or resists contact; dry cores remain inside wet lumps; solids remain after dispersion; or an initially good dispersion rebuilds during hold.

By what changed

By what changed

After make-down, mixing energy, addition order, or liquid conditions changed; or with a new batch, PSD, agglomeration state, surface condition, or composition.

By likely mechanism

By likely mechanism

Poor initial wetting, limited agglomerate penetration or trapped air, insufficient deagglomeration, limited dissolution, or weak dispersion stabilization.

By measurement route

By measurement route

Choose measurements that separate wetting, penetration, deagglomeration, dissolution, and dispersion stability under the actual failed process state encountered.

Find your route

Start with the observed failure, then add context

Determine whether liquid reaches the particle surface, penetrates agglomerates, separates primary particles, or dissolves material after contact. Mixing harder cannot correct every failure and can sometimes entrain air or damage a formulation.

  1. 1Observation
  2. 2Change or context
  3. 3Route

Step 1  What are you seeing?

Step 2  What changed, or when does it happen?

The same visible wetting or dispersion failure can arise from different mechanisms depending on powder-addition conditions, liquid composition, mixing history, hold time, and the particle or surface state.

Step 3  Your diagnostic route

Quick diagnostic comparison

Separate the leading routes before changing the process

Use the pattern and event history to select the first discriminating measurement. The table is a triage aid, not a substitute for reproducing the failed state.

Use the observed pattern and the change that preceded it to select the first discriminator. The pattern does not prove the mechanism.

What you observeWhat changedLikely mechanismMeasurement that separates it
Powder floats or resists initial contactAddition rate, addition point, liquid condition, or powder surface state changedPoor initial wetting or entrapped airWetting or sinking time, capillary penetration, and surface-state comparison under controlled addition conditions
Dry cores remain inside wet lumpsAddition rate, local solids loading, liquid viscosity, hydration rate, or mixing history changedLimited agglomerate penetration, entrapped air, or insufficient deagglomerationPenetration behavior and lump cross-section over time, with response to deaeration or changed addition conditions
Particles wet and disperse but solids remainConcentration, temperature, liquid composition, crystal form, or particle size changedLimited intrinsic dissolutionDissolution profile plus identification of the residual solid under controlled concentration, temperature, and agitation
Dispersion forms then rebuilds structureHold time, pH, ionic strength, stabilizer level, temperature, or solids concentration changedInsufficient dispersion stabilization or reaggregationTime-resolved particle size, turbidity, sedimentation, rheology, or zeta-potential response where applicable

Use the measurement under the actual powder, liquid, addition, mixing, and hold conditions that produced the failure. Separate residual agglomerates from truly undissolved material before changing formulation or process intensity.

Likely mechanisms

Separate first contact, penetration, breakup, dissolution, and stability

A wetting or dispersion failure can occur at several different interfacial steps. Identify the first step that fails before changing shear, formulation, or addition conditions.

Poor initial wetting

Liquid does not spread readily across the relevant particle or agglomerate surface during first contact.

Separate it with: wetting or sinking time, capillary penetration, and contact-angle or surface-state comparison where appropriate.
Powder Wettability: Why Powders Float, Clump, or Disperse

Limited agglomerate penetration

Liquid wets the outside but trapped air, rapid hydration, or a low-permeability outer layer prevents uniform penetration into the agglomerate.

Separate it with: penetration time, lump cross-section, capillary uptake, and response to deaeration or slower addition.
Inside Perspective of Powder Wettability in the Food and Feed Industries

Insufficient deagglomeration

The applied stress, residence time, or mixing sequence does not reduce agglomerates to the required dispersion endpoint.

Separate it with: a controlled energy sweep with particle-size or microscopy endpoint while checking for primary-particle damage.
The Complete Guide to Powder Dispersion and Data Interpretation

Limited intrinsic dissolution

The material is wetted and dispersed, but equilibrium solubility or dissolution kinetics limit how quickly or completely solids disappear.

Separate it with: a dissolution profile under controlled concentration, temperature, agitation, and particle-size conditions.
Poorly Soluble APIs: How Surface Contact Shapes Dissolution and Bioavailability

Insufficient dispersion stabilization

pH, ionic strength, surfactant coverage, polymer adsorption, or other interactions allow flocculation or reaggregation after initial dispersion.

Separate it with: time-resolved particle size, settling, rheology, or zeta-potential response under matched liquid chemistry.
The Complete Guide to Powder Dispersion and Data Interpretation

ⓘ Diagnostic note

Wetting, dispersion, and dissolution are not interchangeable

A powder can wet readily but remain agglomerated, disperse cleanly but dissolve slowly, or initially disperse and then rebuild structure during hold. Identify the first failed step before increasing mixing energy.

Measurement routes

Measure the first step that fails

Choose measurements that distinguish surface wetting, agglomerate breakup, true dissolution, and stability rather than treating every reconstitution problem as a single solubility failure.

Wetting & penetration

Check whether liquid spreads, displaces trapped air, and enters the powder or agglomerate under the actual addition and liquid conditions.

Surface, wettability & electrostatics
Liquid-phase & dispersion behavior

Deagglomeration & particle state

Track whether controlled mixing reduces agglomerates toward a stable endpoint and whether the apparent size change reflects breakup rather than damage to primary particles.

Liquid-phase & dispersion behavior
Particle size & morphology

Dissolution & stability

Separate residual undissolved solids from reaggregation by following concentration, time, particle state, settling, rheology, and liquid chemistry during and after make-down.

Liquid-phase & dispersion behavior
Solubility & dissolution

Process context

Where the failure appears changes the likely cause

Keep addition point, local solids loading, shear history, liquid conditions, residence time, and hold history attached to the diagnosis.

01

Powder addition & make-down

Addition rate, feed point, and local solids loading determine whether liquid reaches the powder cleanly or persistent lumps form.

02

Mixing & high-shear dispersion

Shear history, energy density, sequence, and residence time control deagglomeration, air entrainment, and particle damage.

03

Feeding & dosing

Powder-delivery variation changes local solids concentration and the wetting demand seen by the make-down or mixing step.

04

Liquid preparation

Temperature, pH, ionic strength, viscosity, and dispersant state can shift wetting, dissolution, and dispersion stability.

05

Recirculation & transfer

Pumps, lines, and repeated circulation can change shear history, entrained air, agglomerate state, and dispersion quality.

06

Post-make-down hold

Hydration, settling, flocculation, or reaggregation can develop during hold even when the initial dispersion appears acceptable.

Go deeper

Guides and articles for wetting, dispersion, and dissolution

Use the deeper material to distinguish first-contact wetting, deagglomeration and suspension stability, and true dissolution limits before changing formulation or process energy.

Powder wetting, floating, and clumping in liquid

Powder Wettability: Why Powders Float, Clump, or Disperse

Explains first-contact wetting, trapped air, capillary penetration, floating powder, and dry-core lump formation during incorporation.

Powder dispersion and suspension stability analysis

The Complete Guide to Powder Dispersion and Data Interpretation

Connects deagglomeration, dispersant selection, particle-size response, sedimentation, rheology, and stability to practical dispersion decisions.

Poorly soluble API surface contact and dissolution

Poorly Soluble APIs: How Surface Contact Shapes Dissolution and Bioavailability

Shows how wetting, surface state, solid form, and molecular solubility interact when dissolution remains limiting after successful liquid contact.

Wettability

Follow the Particle Behavior child for surface wetting, contact angle, capillary penetration, sinkability, and air displacement.

Dispersion

Follow the Particle Behavior child for deagglomeration, reaggregation, stabilisation, and liquid-phase particle interactions.

Solubility & dissolution

Separate equilibrium solubility from dissolution rate, wetting, surface area, mixing, and transport limitations.

Liquid-phase testing

Use the Test Methods family to compare wetting, dispersion, stability, sedimentation, viscosity, and related liquid-phase measurements.

FAQ

Wetting, dispersion, and dissolution questions

Wetting is the first contact between liquid and the particle surface. Dispersion requires particles or agglomerates to separate into the required liquid-phase state. Dissolution requires material to leave the solid phase and enter solution at the molecular or ionic level. A product can succeed at one step and fail at the next.

Solubility does not guarantee rapid initial wetting. Low surface wettability, trapped air, fine-particle cohesion, agglomerate structure, or the way powder is added can delay liquid access even when the material will dissolve once productive contact is established.

The outside of an agglomerate may wet or hydrate faster than liquid can penetrate inward. Trapped air, low permeability, rapid gel or shell formation, and high local solids loading can isolate the interior and leave a dry core.

Run a controlled energy or time sweep and measure the dispersion endpoint. If additional energy continues to reduce agglomerate size without damaging primary particles, mixing remains limiting. If the endpoint stops changing, the controlling issue may instead be wetting, formulation chemistry, or intrinsic particle state.

Particles can flocculate, reaggregate, settle, hydrate, or rebuild structure after initial make-down. Changes in pH, ionic strength, surfactant coverage, polymer adsorption, rheology, and temperature can all alter the stability of the dispersed state with time.

First confirm that particles are wetted and deagglomerated. Then follow residual solids or dissolved concentration with time under controlled temperature, concentration, agitation, and particle-size conditions. If solids remain despite a stable dispersed state, intrinsic dissolution or solubility is more likely to be limiting.

Independent diagnostic support

Need the measurement, not just the guidance?

PowderTechnology.info works closely with Delft Solids Solutions, a contract research organization specializing in the physical behavior of powders and granules. DSS provides contract testing and characterization, with its laboratory working in accordance with ISO 17025. Contact Delft Solids Solutions.
