High-Shear Wet Granulation Endpoint Detection: What Power Consumption Signals Actually Tell You

The power or torque trace in high-shear wet granulation reflects changing mechanical resistance in the bulk wet mass, not granule size directly. Its shape can correspond to changes associated with wetting, growth, increasing liquid saturation, and possible overwetting, and a defined feature of that profile can serve as a validated endpoint marker when correlated with acceptable granule or product properties for the specific formulation and equipment.

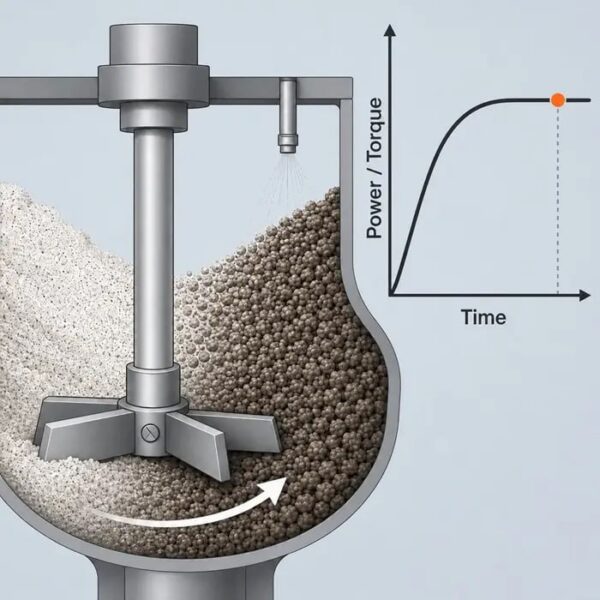

In a high-shear wet granulation run, power or torque is often one of the most readily available continuous process signals. As liquid is added and distributed through the bed, the mechanical resistance encountered by the impeller changes as particles wet, nuclei form, granules grow, and the wet mass consolidates.

The resulting profile is not necessarily a simple rise to a single endpoint. Different regions of the curve can represent different stages of granulation, and continued liquid addition can eventually produce overwetting and a declining signal. Interpreting an endpoint therefore requires understanding both the position and direction of the signal within the full process profile.

During liquid addition, the powder first wets, and nuclei begin to form. At relatively low liquid saturation, liquid bridges occur mainly at individual particle contacts in the pendular state. As more liquid fills the spaces between particles, the system progresses through the funicular state and toward the more highly saturated capillary state. Further liquid addition can eventually carry the system into the droplet state, where particles become suspended in excess liquid rather than held primarily by discrete liquid bridges. Granule growth and consolidation during the earlier stages increase resistance to impeller movement and drive the size enlargement process.

These saturation states underpin the classical power or torque profile, but formulations do not all generate the same curve. Powder wettability and solubility, binder properties, impeller speed, and liquid-addition conditions can shift, compress, or alter the apparent stages (Kristensen and Schaefer, power consumption profiles in high-shear wet granulation; end-point detection in a wet granulation process).

Continued liquid addition beyond the useful granulation range moves the system toward the droplet state and can produce rapid coalescence, large agglomerates, paste formation, and eventually an overwetted or slurry-like mass. In classical profiles, torque or power may reach a maximum and then decrease as the wet mass moves further into this overwetted state.

The full signal can therefore be non-monotonic. An absolute power or torque value may occur at more than one stage of the process, so endpoint interpretation should consider the direction and rate of signal change as well as the value itself.

Torque, mechanical shaft power, and electrical motor power are related but are not identical measurements. Shaft torque represents the rotational resistance acting on the impeller shaft. Mechanical shaft power combines that torque with rotational speed, while electrical motor power also includes losses and efficiency effects within the motor and drivetrain.

Where direct shaft torque is available, it can provide a cleaner indication of changes in mechanical load from the wet mass. Motor-power measurements require more care because gearbox efficiency, bearing condition, lubrication, and other mechanical losses can shift the reported value independently of granulation behavior.

The appropriate baseline should also be defined. Depending on the signal and monitoring method, this may be a no-load baseline or the pre-addition dry-mixing level. Accounting for that reference makes changes associated with wet granulation easier to distinguish.

Neither torque nor power directly reports granule size.

Blade-level measurements likewise show that the signal reflects the combined mechanical response of the granule bed rather than a single particle property (blade-granule bed stress characterization).

Batch fill, vessel and impeller geometry, rotational speed, formulation, and liquid-addition conditions all affect the load experienced by the impeller. An absolute power or torque setpoint established on one granulator should therefore not be transferred unchanged to another.

Scale-up approaches instead examine quantities such as net power above an appropriate baseline, specific impeller work per unit mass, power per unit volume, impeller tip speed, Froude number, and geometric similarity. These approaches can improve comparability, but none provides a universal conversion rule for every formulation and granulator. The appropriate scale-up basis must be demonstrated for the particular process (series scale-up using impeller power and blade design).

A power or torque profile becomes useful for endpoint control when a defined feature of the signal has been linked to the properties the granulation process needs to deliver. Depending on the formulation and process, that marker may be a power or torque level, slope change, inflection, plateau, rate of change, or accumulated impeller work. It does not necessarily correspond to the maximum value on the curve.

The appropriate endpoint signal also depends on the granulation route. Processes such as fluidized-bed granulation rely on different equipment dynamics and process measurements, so endpoint strategies developed for high-shear mixing should not be transferred directly between technologies.

During development, the selected marker should be compared with independent measurements such as particle size distribution, granule density or porosity, moisture content, or downstream product performance. Once the relationship is reproducible within the defined operating window, the signal can be used for real-time endpoint control.

Power and torque are only part of the available process-monitoring toolkit. Within a Process Analytical Technology approach, techniques such as near-infrared spectroscopy can provide information on moisture or composition, focused beam reflectance measurement can follow changes in particle development, and imaging, acoustic emission, or vibration monitoring can provide additional information about process state.

Some in-line optical probes also introduce practical complications because wet granules can coat or foul the probe window during processing. Motor-power monitoring remains attractive because it is continuous, non-intrusive, and often available from the granulator drive system without an additional process probe. Direct torque measurement can provide a more process-specific mechanical signal but may require dedicated instrumentation. Complementary PAT measurements become valuable when the mechanical signal cannot distinguish the process state or product property that matters.

Before relying on a power- or torque-based endpoint, confirm:

• Signal source: Is the measurement shaft torque, motor power, or another derived signal?
• Baseline: Has dry-mixing or no-load power been accounted for where relevant?
• Curve position: Which region of the granulation profile is the batch currently occupying?
• Endpoint marker: Which feature of the signal has been correlated with acceptable granule or product properties?
• Operating window: Are formulation, fill level, impeller speed, geometry, and liquid-addition conditions still within the validated range?
• Scale-up basis: If equipment or scale has changed, have the normalization method and endpoint relationship been re-established rather than simply transferring the original setpoint?
